UPDATED January 17, 2017 - this works with the most recent Raspberry Pi Pixel image after using dist-upgrade, Synergy version 1.8.6

This is a guide on how to download Synergy source files, build them, and install for automatic startup on the Raspberry Pi 3 (all models). This setup uses the github "master.zip" which is always the latest stable release from Symless, not specifically Synergy version 1.8.6 although that is what this guide used.

TLDR - Enter commands, reboot, synergy client connects on its own


  • Updated January 17, 2017
  • Written June 18, 2016
  • Pi: Raspberry Pi Model 3B
  • Synergy version: 1.8.6
  • Raspbian: May 27, 2016 (Debian 8 Jessie)


Build and Install Synergy on Raspberry Pi 3

Do not use the root user, use the pi user. This method will be building the apps without root, run as pi. These steps require no skill, just copy and paste.


  • Install dependencies (Debian 8 Raspbian)
sudo apt-get update
sudo apt-get install build-essential cmake libavahi-compat-libdnssd-dev libcurl4-openssl-dev libssl-dev python qt4-dev-tools xorg-dev


  • Download Synergy sources from github (master is latest)
  • Note: You can optionally install a specific version by choosing another zip
wget https://github.com/symless/synergy/archive/master.zip
Synergy Pi Config success despite Git error 128


  • Unzip Synergy sources, enter directory
unzip master.zip
cd synergy-master

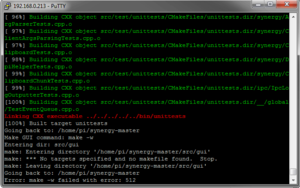

End of successful synergy build despite Git error 512
  • Configure using hm.sh script
  • Note: Git error 128 at the end was not a problem
./hm.sh conf -g1


  • Build using hm.sh script (15 minutes)
  • Note: "Error: make -w failed with error: 512" is not a problem
./hm.sh build


  • Copy bin files to your path
cd bin
sudo cp syn* /usr/local/bin


Conclusion

You now have Synergy binaries compiled and in your path, this includes synergys, synergyc, synergyd, and leaves out some others still in your bin directory if you need more.


Make Synergy Client Autostart on Raspberry Pi

These instructions are for the Synergy client autostart, not the server.

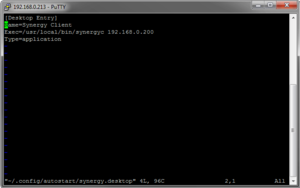

synergy.desktop autostart file contents
  • Auto-Login user pi
sudo raspi-config
(Select "Boot Options", then "Desktop Autologin")


  • Create Synergy client autostart file (Must be as user pi, NOT root!)
mkdir -p ~/.config/autostart
nano ~/.config/autostart/synergy.desktop


  • Add lines to autostart file (configure your ip or host here)
[Desktop Entry]
Name=Synergy Client
Exec=/usr/local/bin/synergyc <synergy server ip or host name>
Type=application
